Premium Sound Deadening and Heat Proof Pack- Floorpan, Doors & Roof with Cargo

4x4 Wagon Sound Deadening Pack

Reduce Noise & Heat for a More Comfortable 4WD Touring Experience

Upgrade your Land Rover with a comprehensive soundproofing and thermal insulation pack. Whether you’re tackling long highway drives or off-road adventures, this pack is designed to reduce road noise, block heat transfer, and improve cabin comfort.

Each pack provides maximum coverage using high-quality materials engineered for Australian conditions.

Choosing the Right Pack – A Simple Guide

Picking the right pack comes down to two key factors:

1️⃣ Where do you want to cover?

• Floor pan only → Standard Pack 1 or Premium Pack 2
• Floor pan + doors → Premium Pack 3
• Full vehicle (floor pan, doors, and roof) → Premium Pack 4

2️⃣ What type of underlay do you prefer?

• Standard (Waterproof Underlay – peel & stick foam) → Pack 1
• Premium (Mass Noise Liner – superior sound-blocking blanket, removable if the vehicle is submerged) → Pack 2, 3, or 4

Optional Upgrade – Extra Sound Deadener for the Cargo Area

The ribbed cargo area design naturally helps to reduce vibration and noise, which is why sound deadener is not included as standard—keeping both costs and weight (approximately 7kg) down.

However, many customers prefer to fully insulate the cargo area floor for complete coverage and a uniform finish. If you choose this optional upgrade, you’ll further reduce vibration noise, creating an even quieter and more insulated ride.

* If selecting this option, apply Stage 1 Sound Deadener before installing the Mass Noise Liner (MNL) in the cargo area.

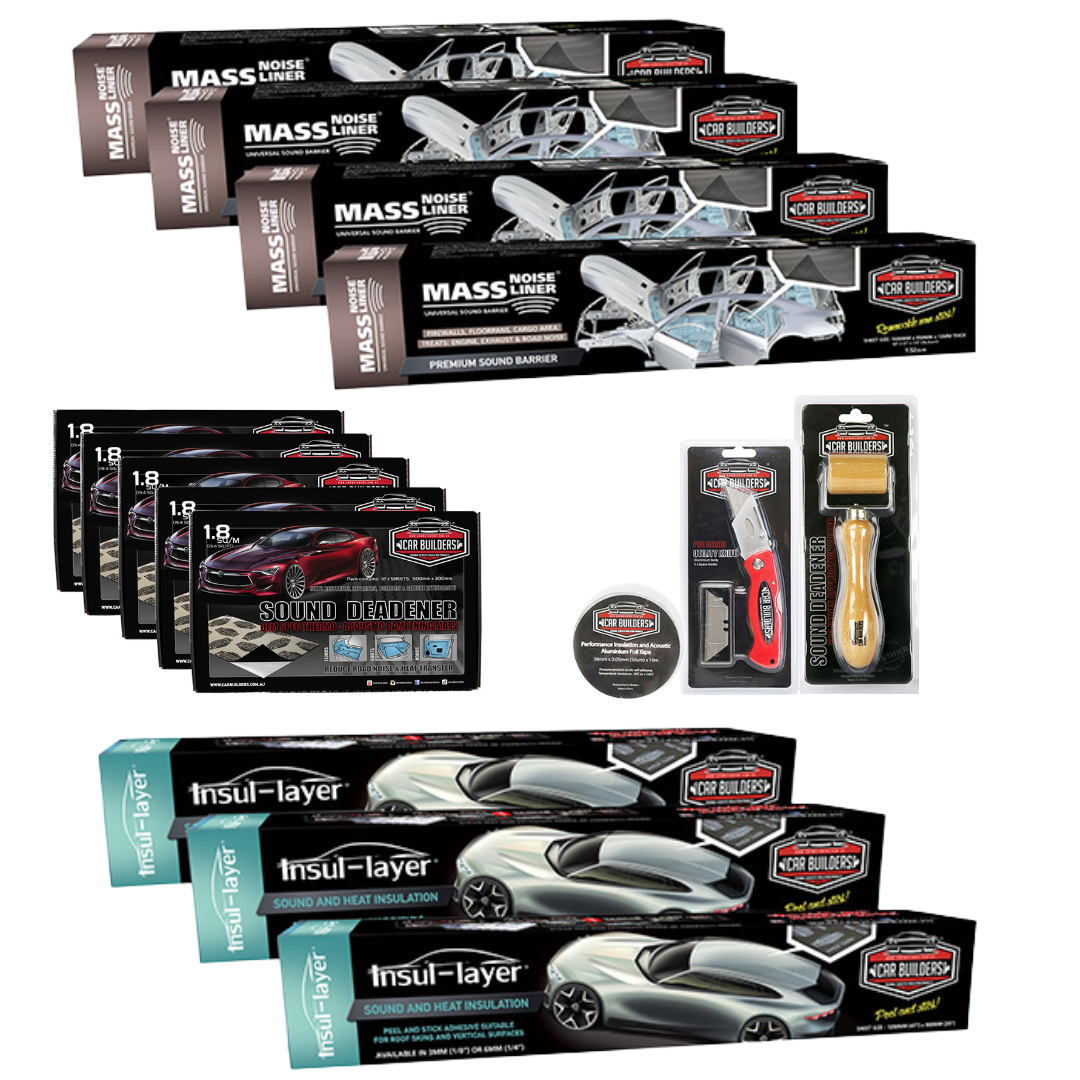

Full Kit – Covers Floor Pan, Inner Quarter Panels, Rear Wheel Arches, Doors & Roof

Total weight: Approx. 60kg

✔ 5 Boxes (9.0 sq/m) of Stage 1 Sound Deadener
   ▪ Applied to the floor pan, firewall, inner quarter panels, rear wheel arches, inside the doors, and on the roof for complete vehicle soundproofing.

✔ 3 Sheets (4.5 sq/m) of Mass Noise Liner (MNL)
   ▪ Installed on the floor pan under the carpet from the front cabin to the rear cargo area, blocking noise at the source.
   ▪ Can be removed if the vehicle is flooded and placed back once dry.

✔ 1 Sheet (1.5 sq/m) of Mass Noise Liner (MNL)
   ▪ Installed in the cargo area as a removable sound blanket to eliminate exhaust and road noise.

* If selecting the optional Cargo Area Sound Deadener, apply it before installing this layer.

✔ 3 Sheets (3 sq/m) of Insul-Layer

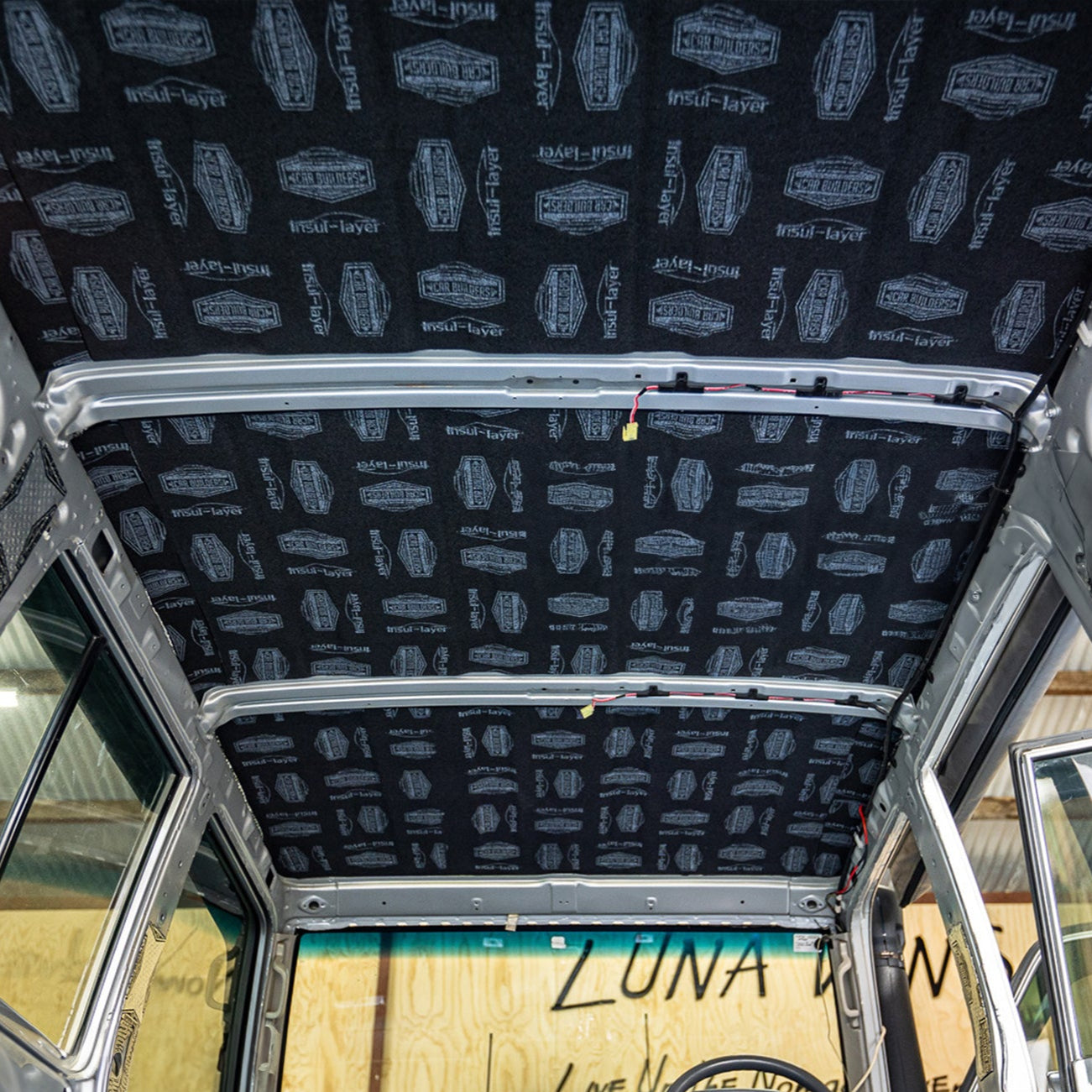

   ▪ A peel & stick closed-cell foam applied to the roof skin to reduce heat buildup and stop drumming effects.

✔ Install Kit

 Best for: Complete 4WD insulation, covering floor, doors, and roof for the quietest ride possible.
