Range Rover Classic Digital Dash (Hard Dash & Soft Dash)

Factory-Fit Digital Dash Replacement for Range Rover Classic

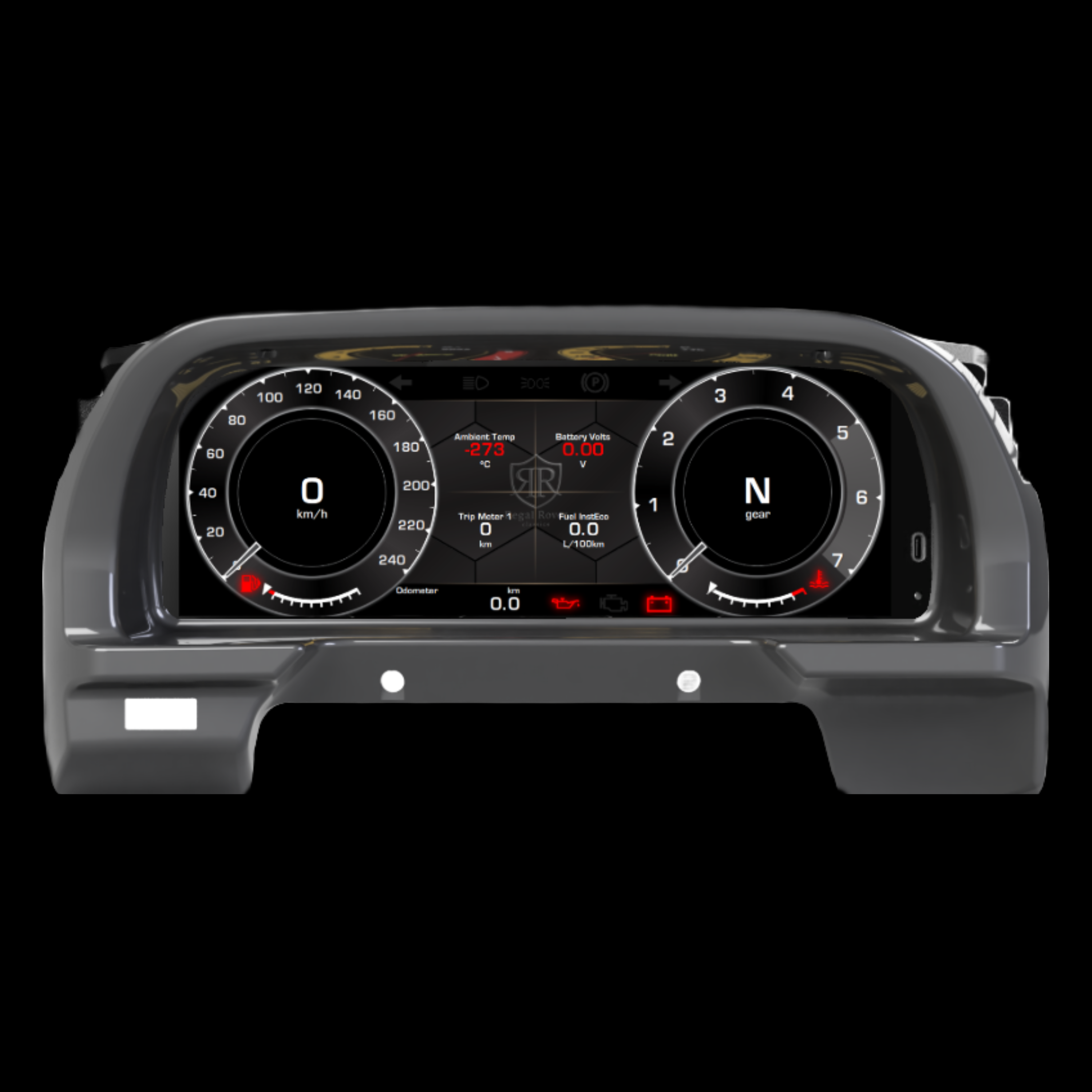

A vehicle-specific screen and surround designed as a true factory-fit replacement for the Range Rover Classic.

This kit replaces the original instrument cluster with a modern digital display, while retaining a clean, factory-style appearance. The screen is housed in a vehicle-specific surround that bolts into the original dash locations with no cutting or trimming required.

Built around the Haltech UC-10 display, supplied pre-configured with our Range Rover Classic layouts and ready to integrate into a modern ECU setup.

What’s included

• Digital display supplied pre-programmed and ready to configure with your ECU

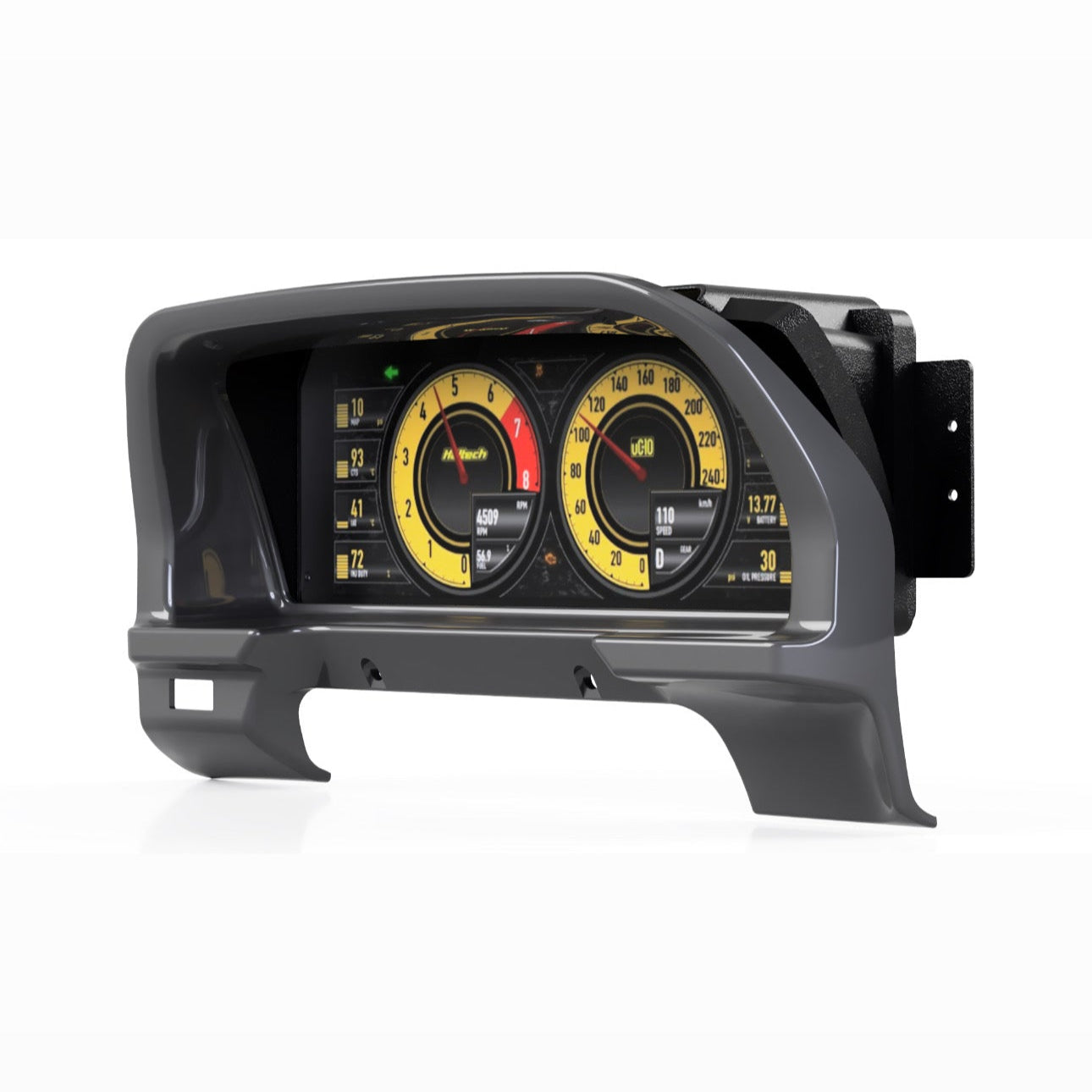

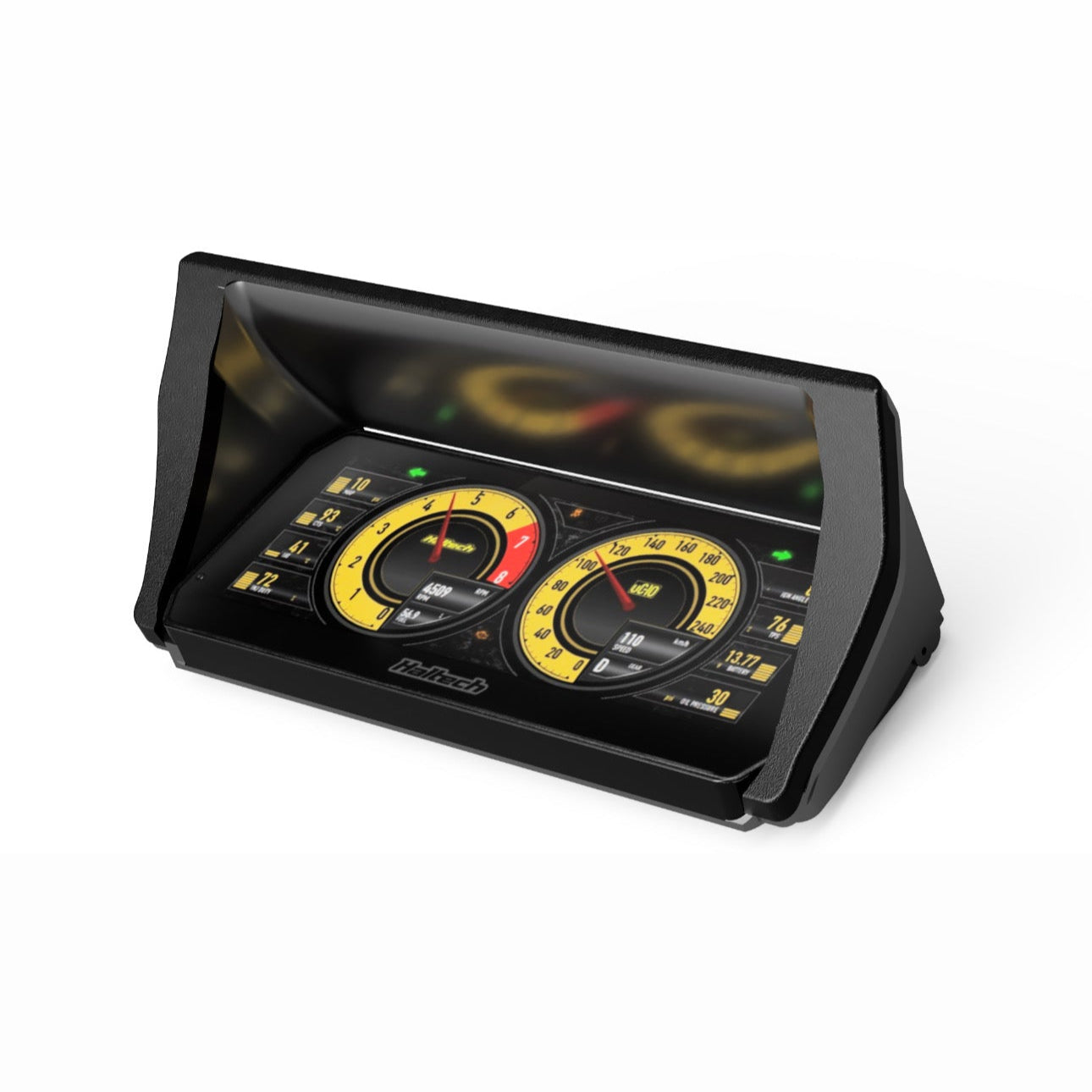

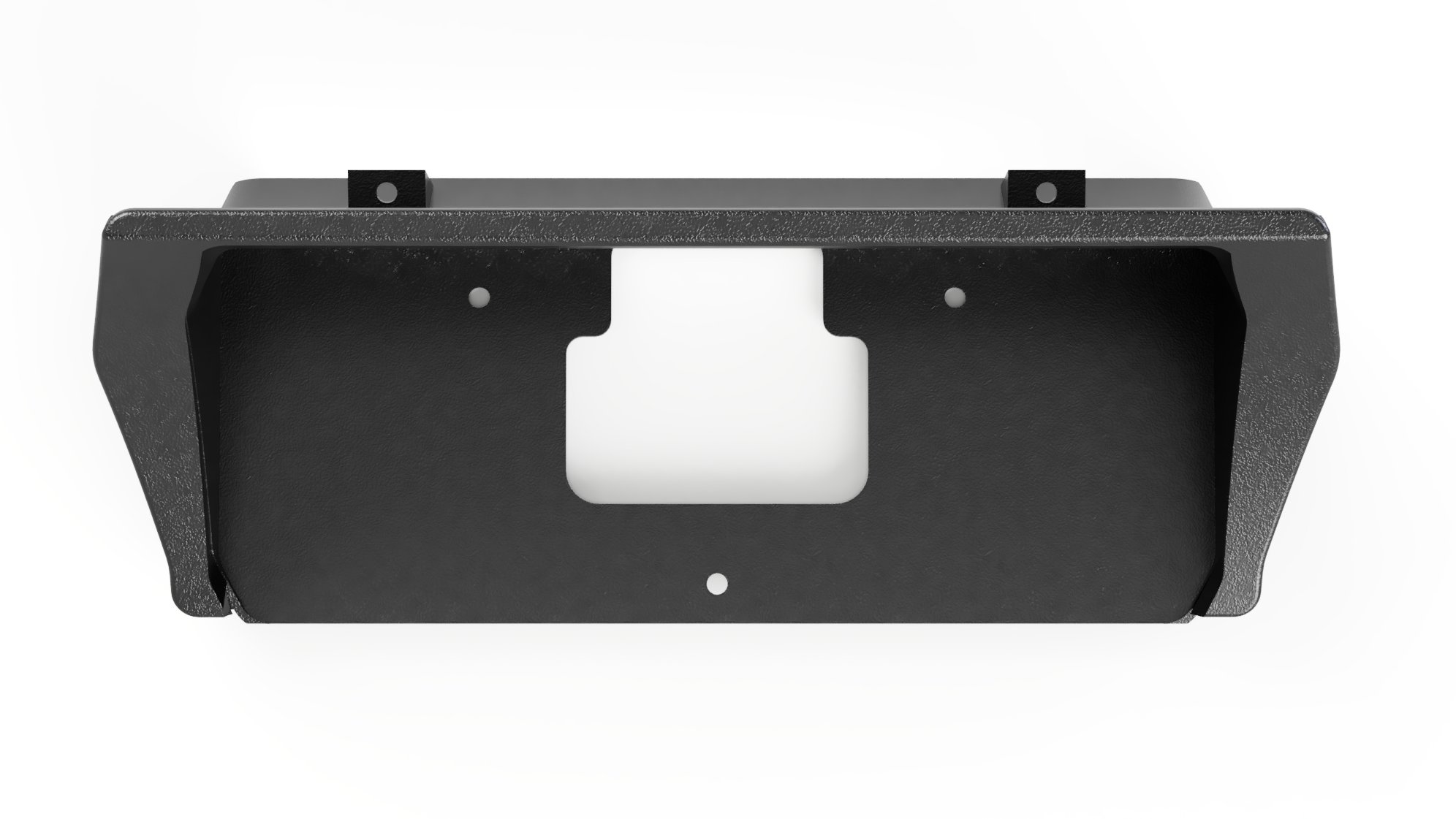

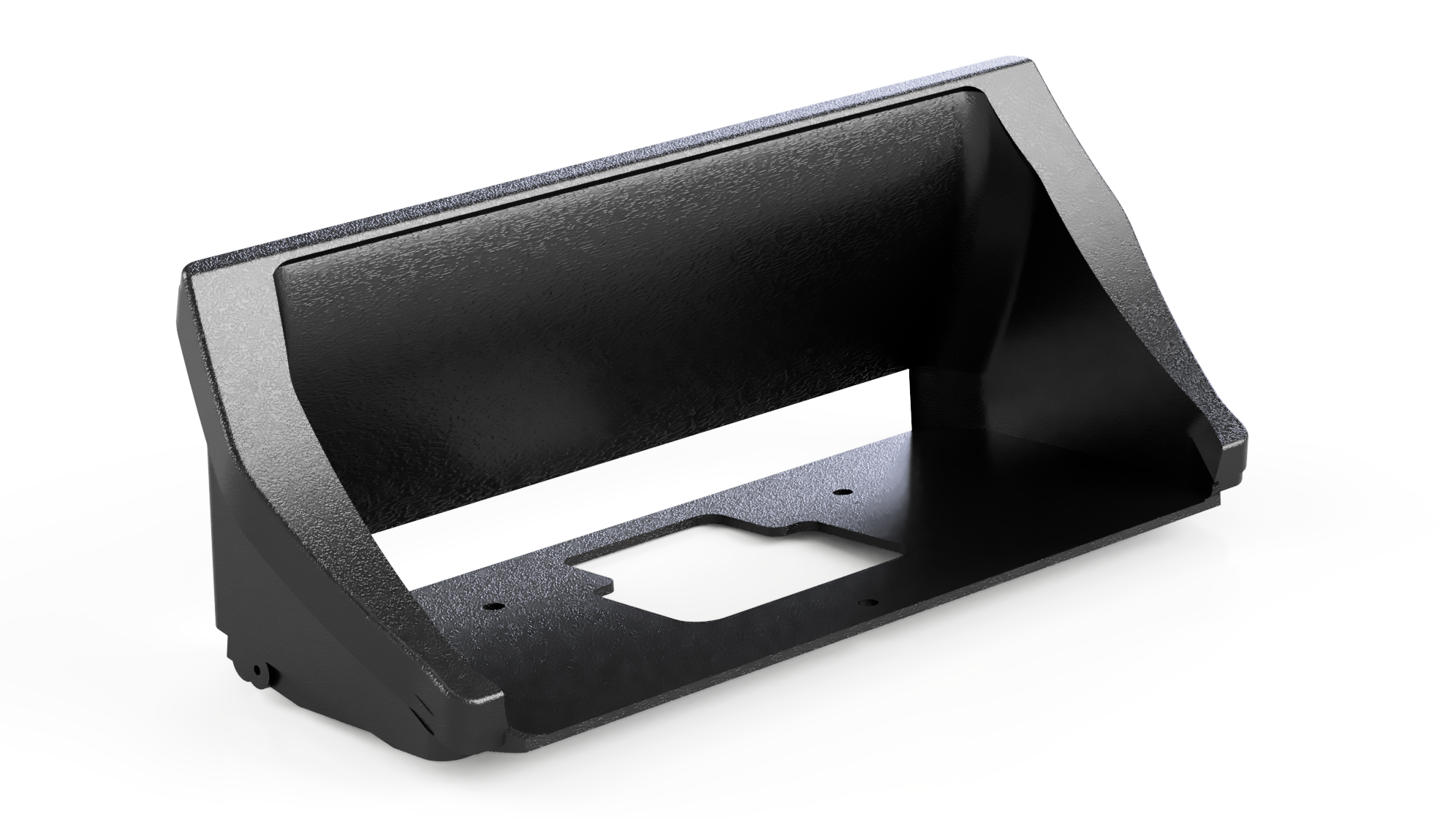

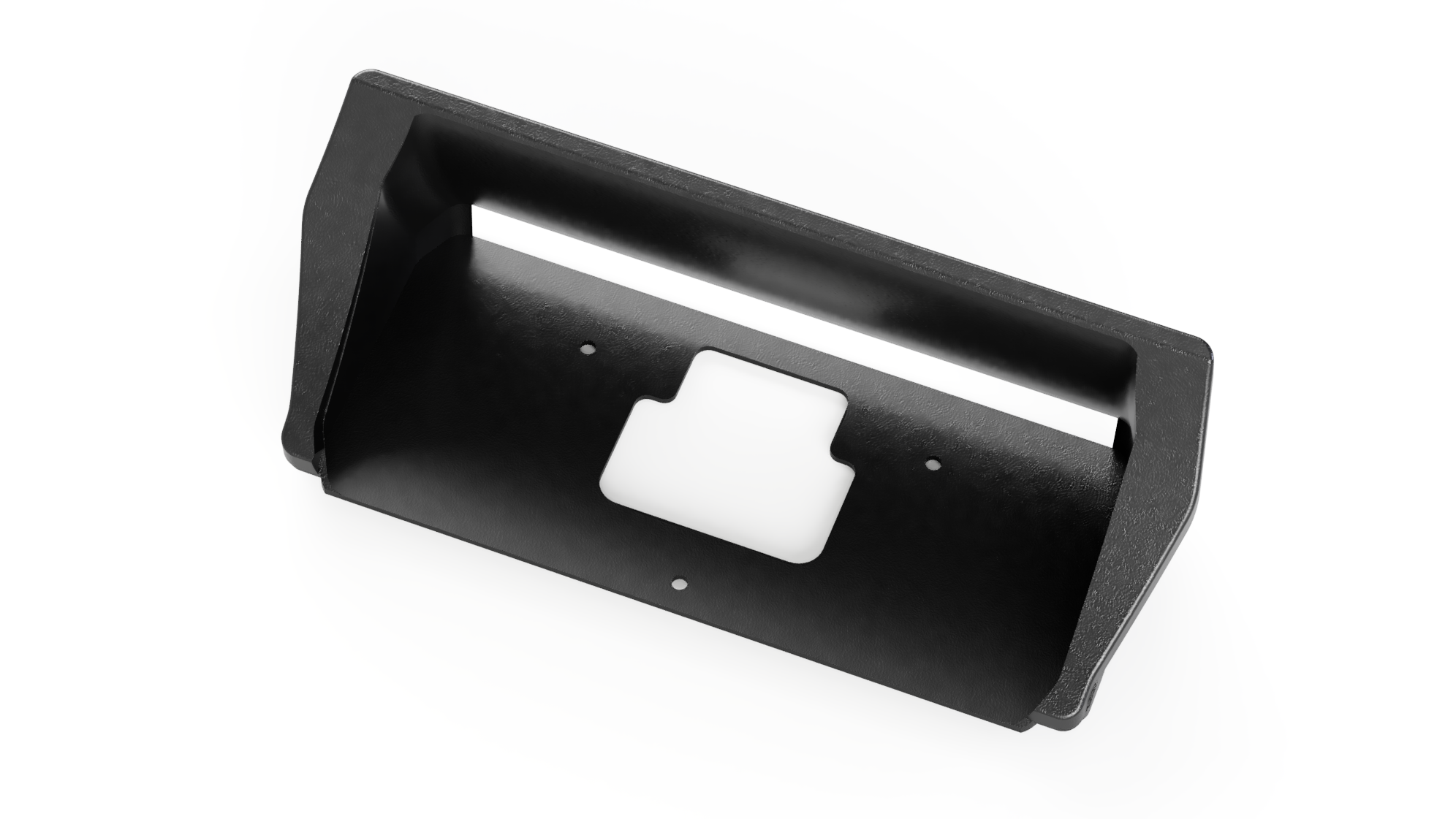

• Vehicle-specific dash surround designed from 3D scans of an original Range Rover Classic dash, printed in a durable automotive-grade material, then hand body-worked and painted matte black

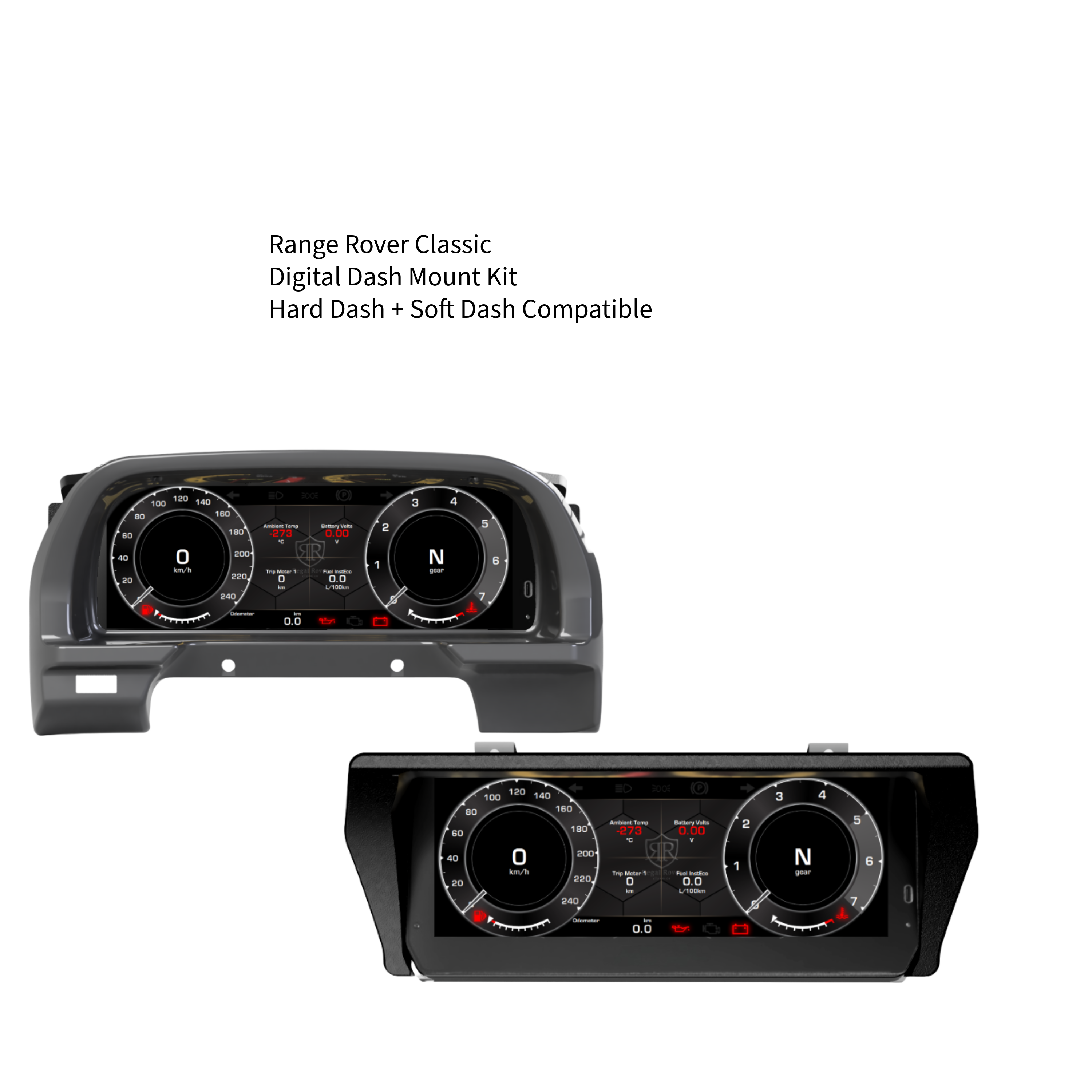

• Suitable for Hard Dash and Soft Dash vehicles

Two screen styles included

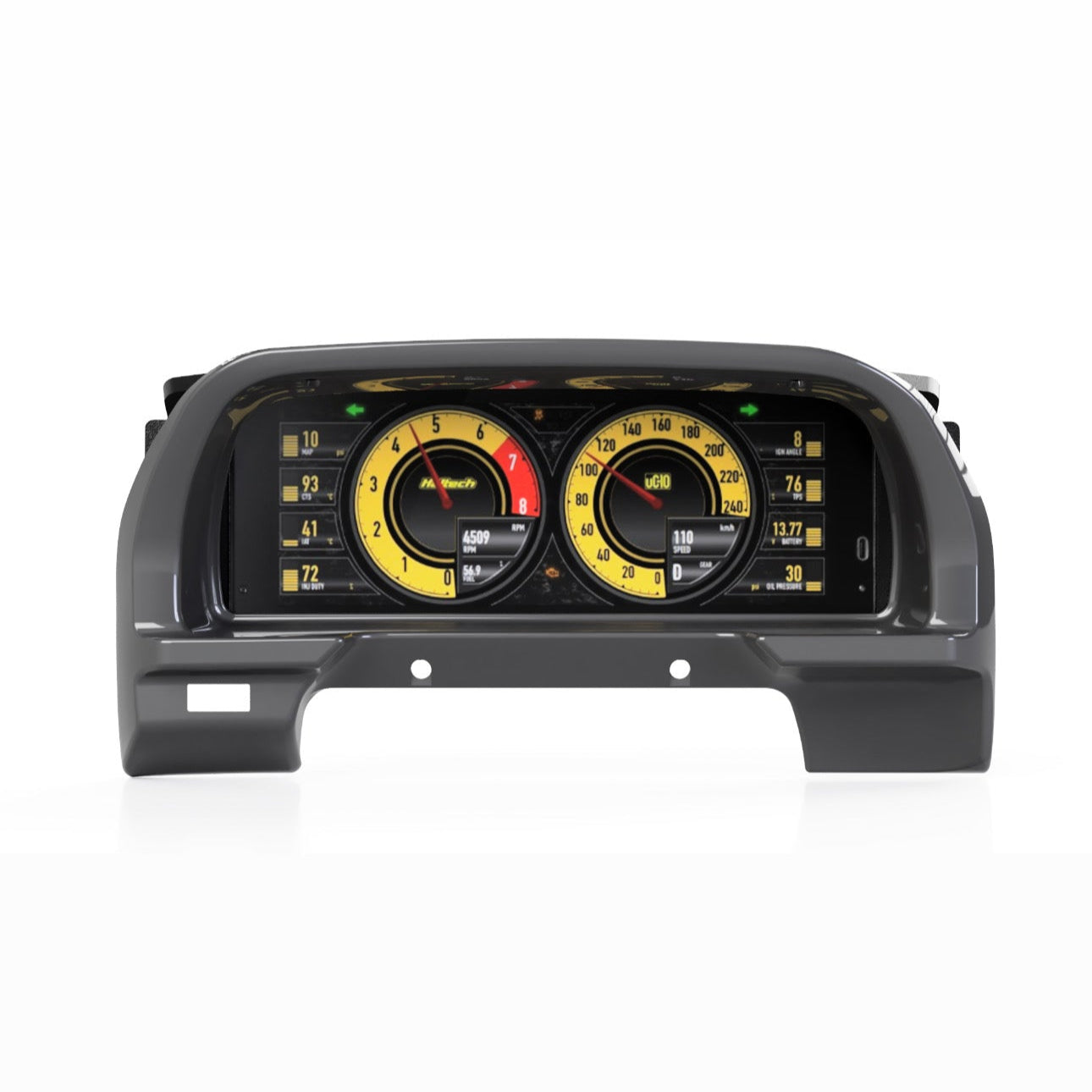

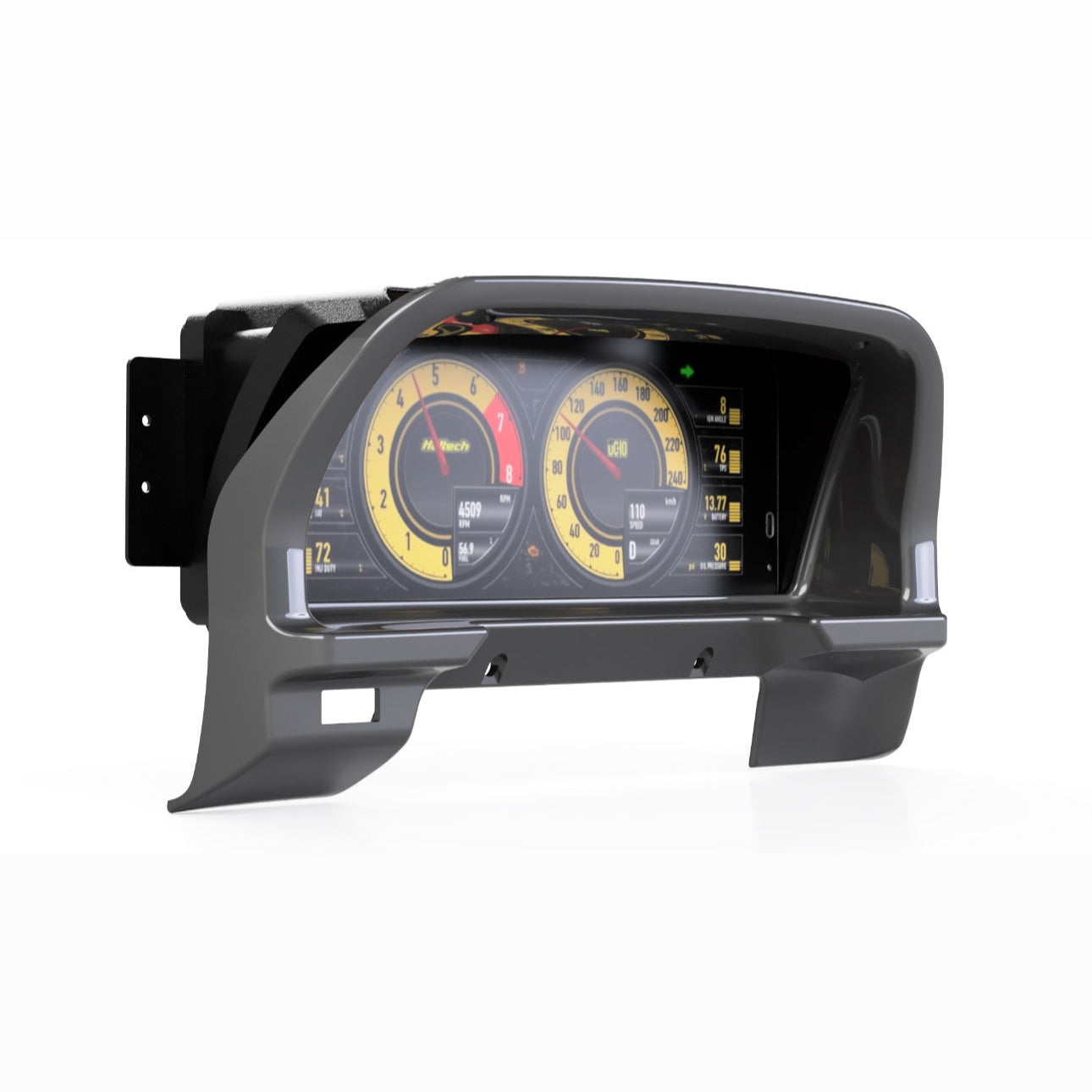

• Early Range Rover Classic inspired layout with an analogue-style appearance
• Late-model Range Rover inspired layout with a modern digital look

Optional add-ons

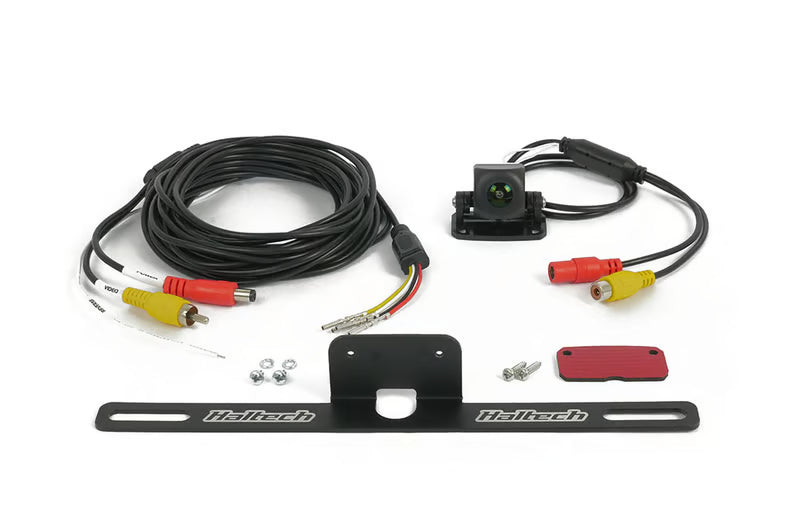

• Reverse camera kit — Haltech-compatible camera supplied with a dedicated harness and a powder-coated aluminium number-plate mounting bracket
• Ambient air temperature sensor — Motion Raceworks external ambient air temp sensor for live display on the dash

The base kit can be run on its own or configured with either option, or both, depending on your setup.

Fit & appearance

The surround is designed as a direct replacement for the factory binnacle. It installs using the original mounting locations and sits correctly within the dash opening, maintaining original proportions and sightlines.

• Direct bolt-in fit using factory dash locations
• No cutting or trimming required
• OEM-inspired shape and finish

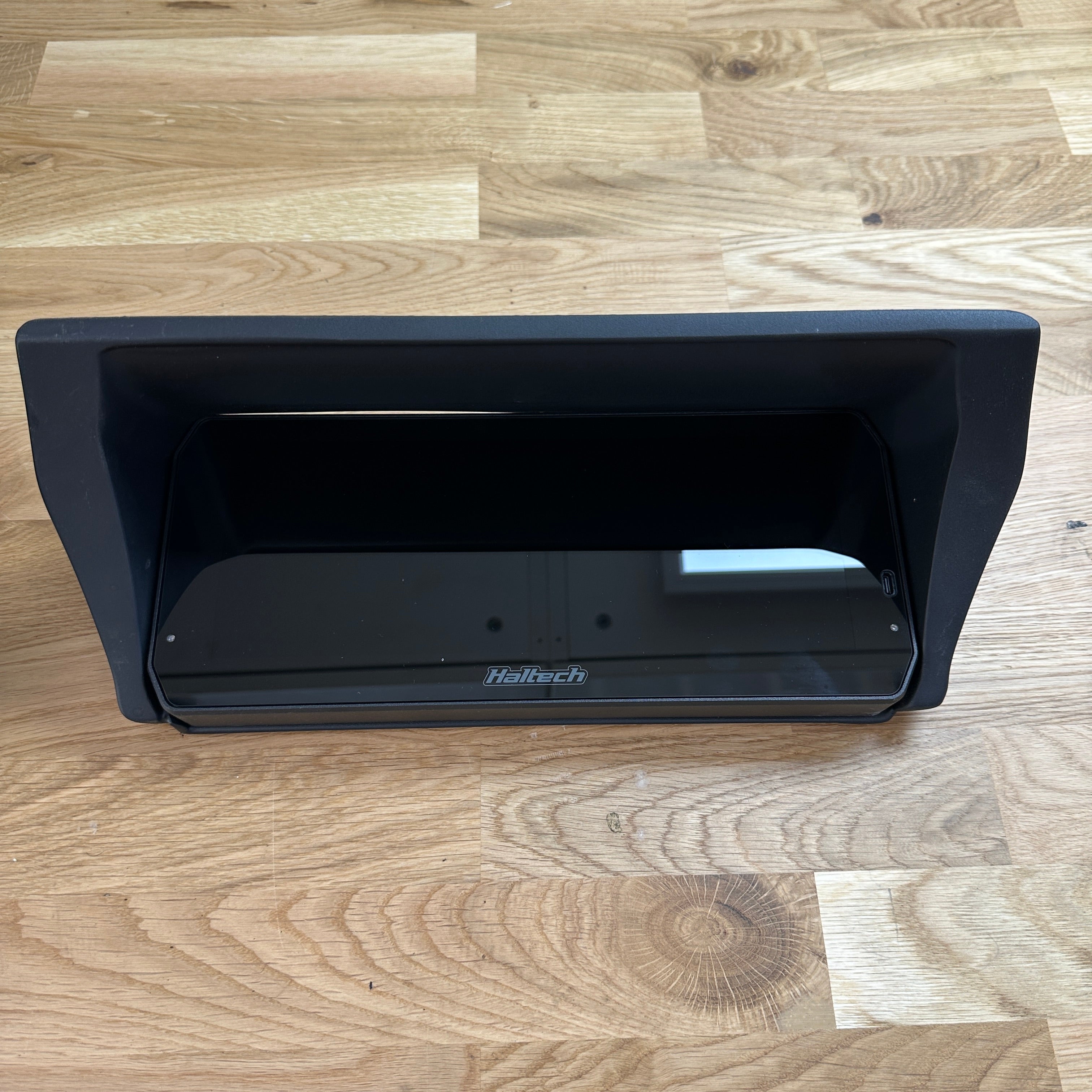

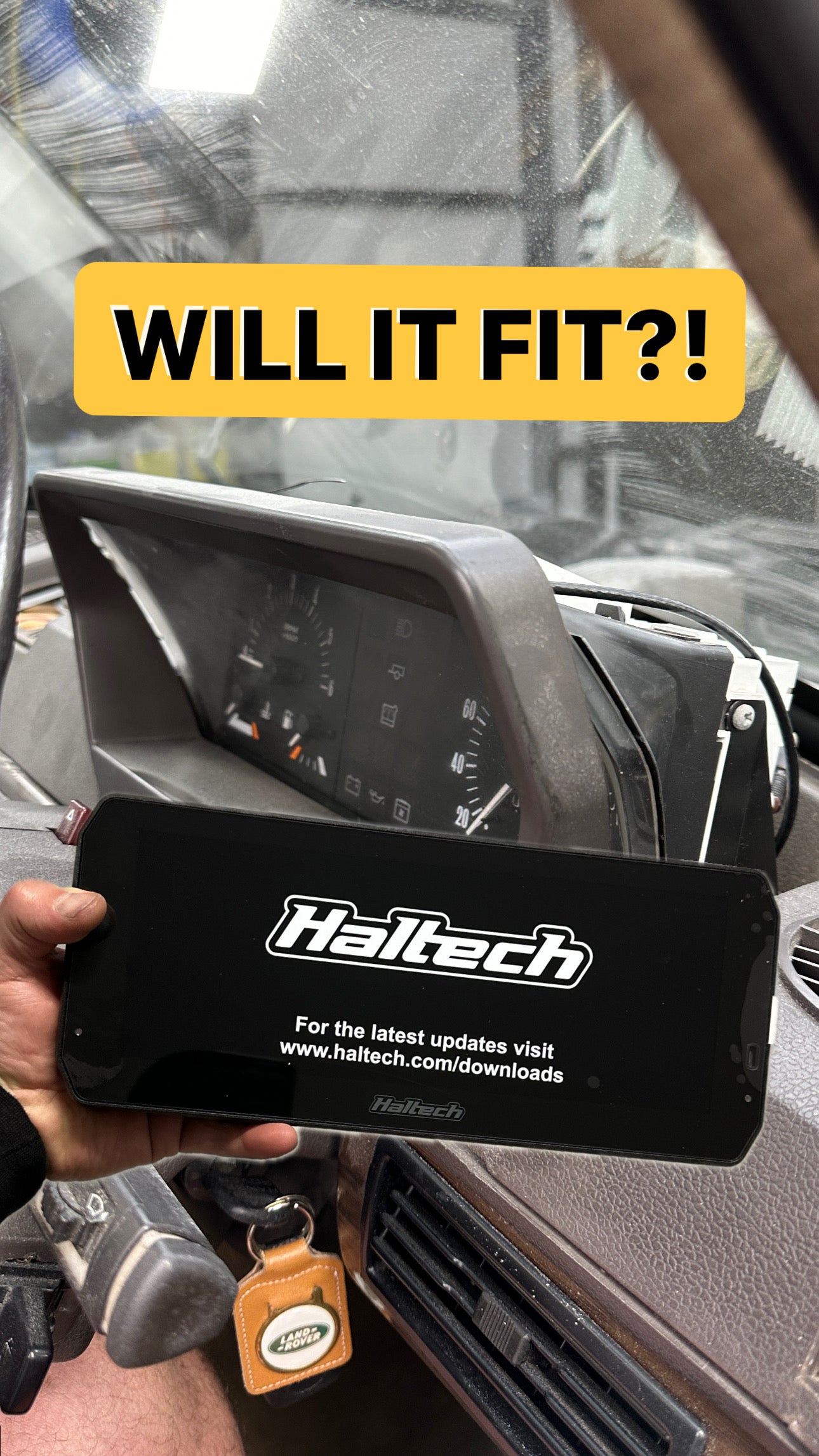

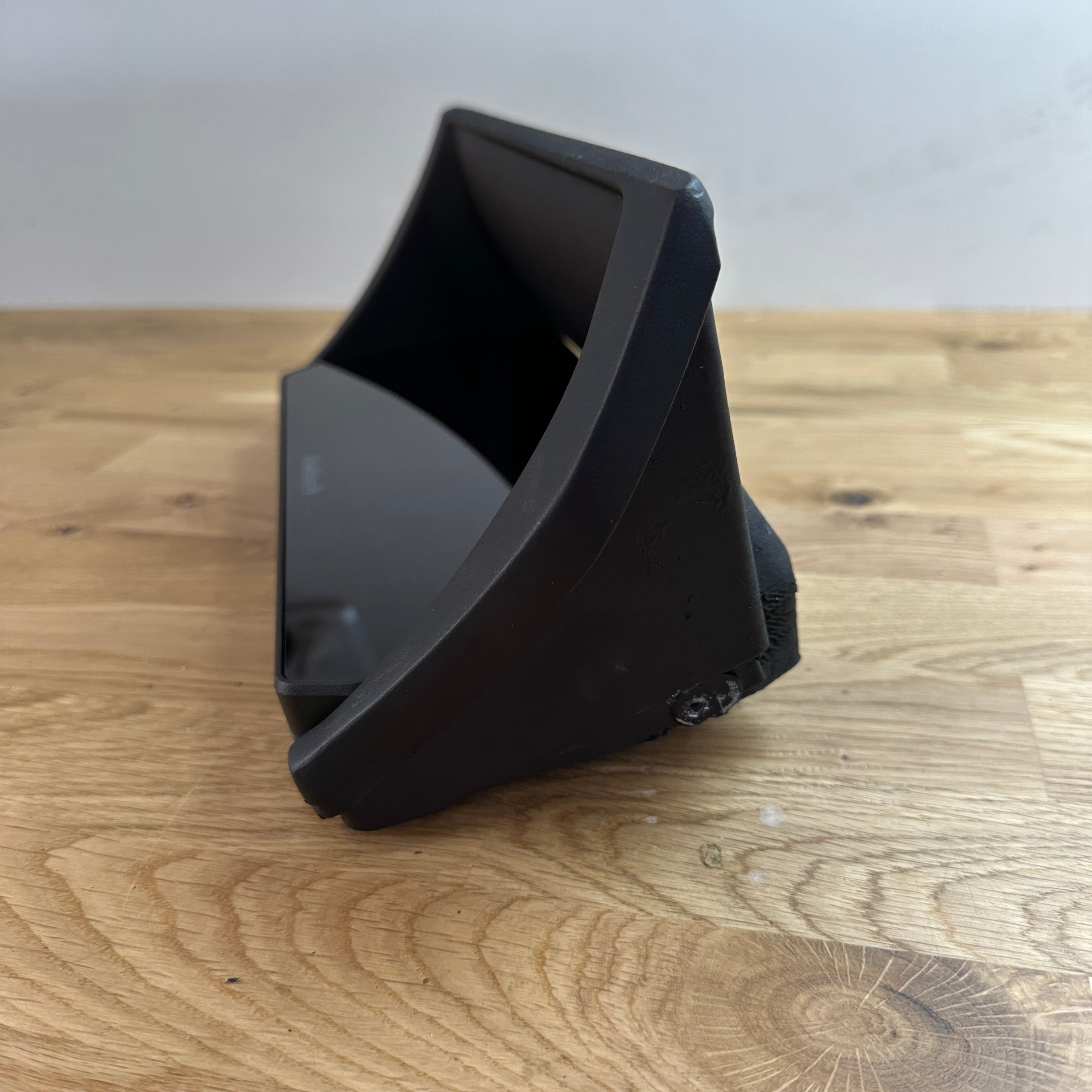

Initial sizing check in factory binnacle

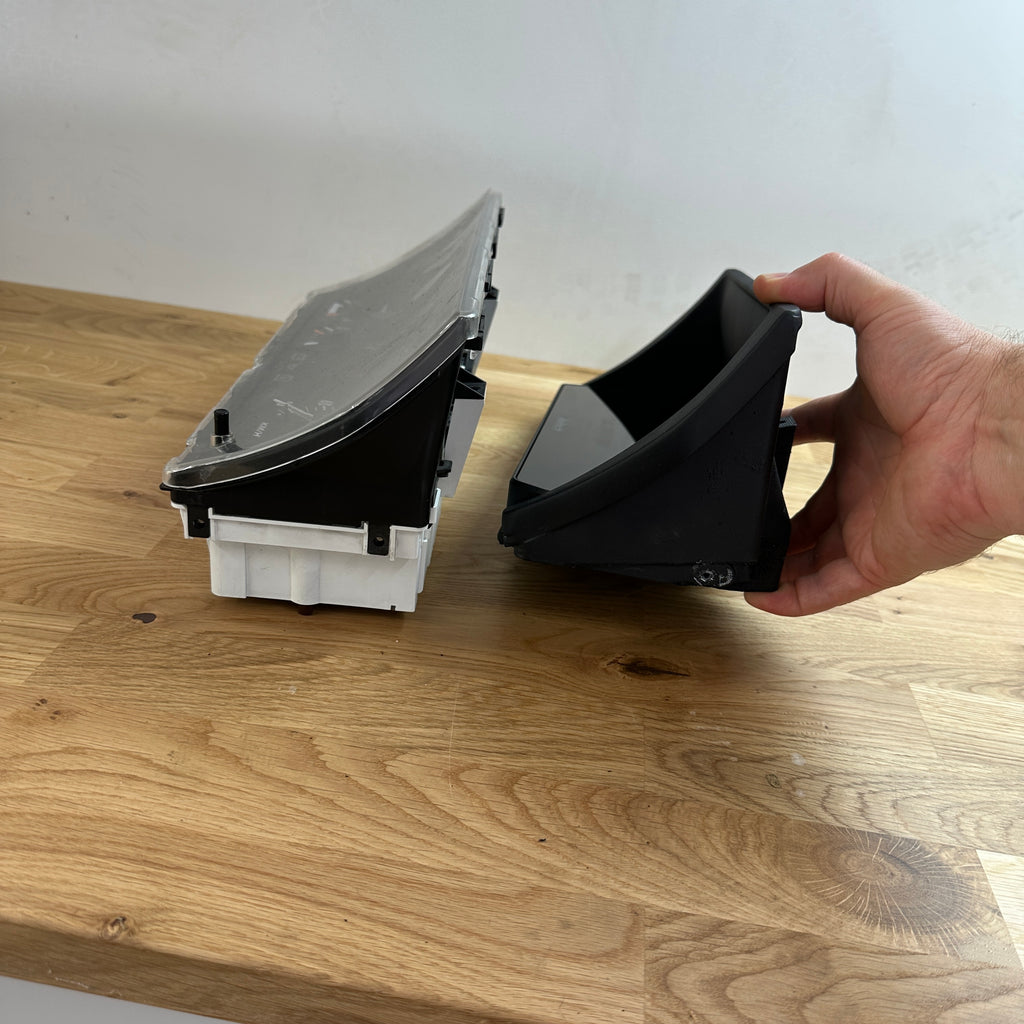

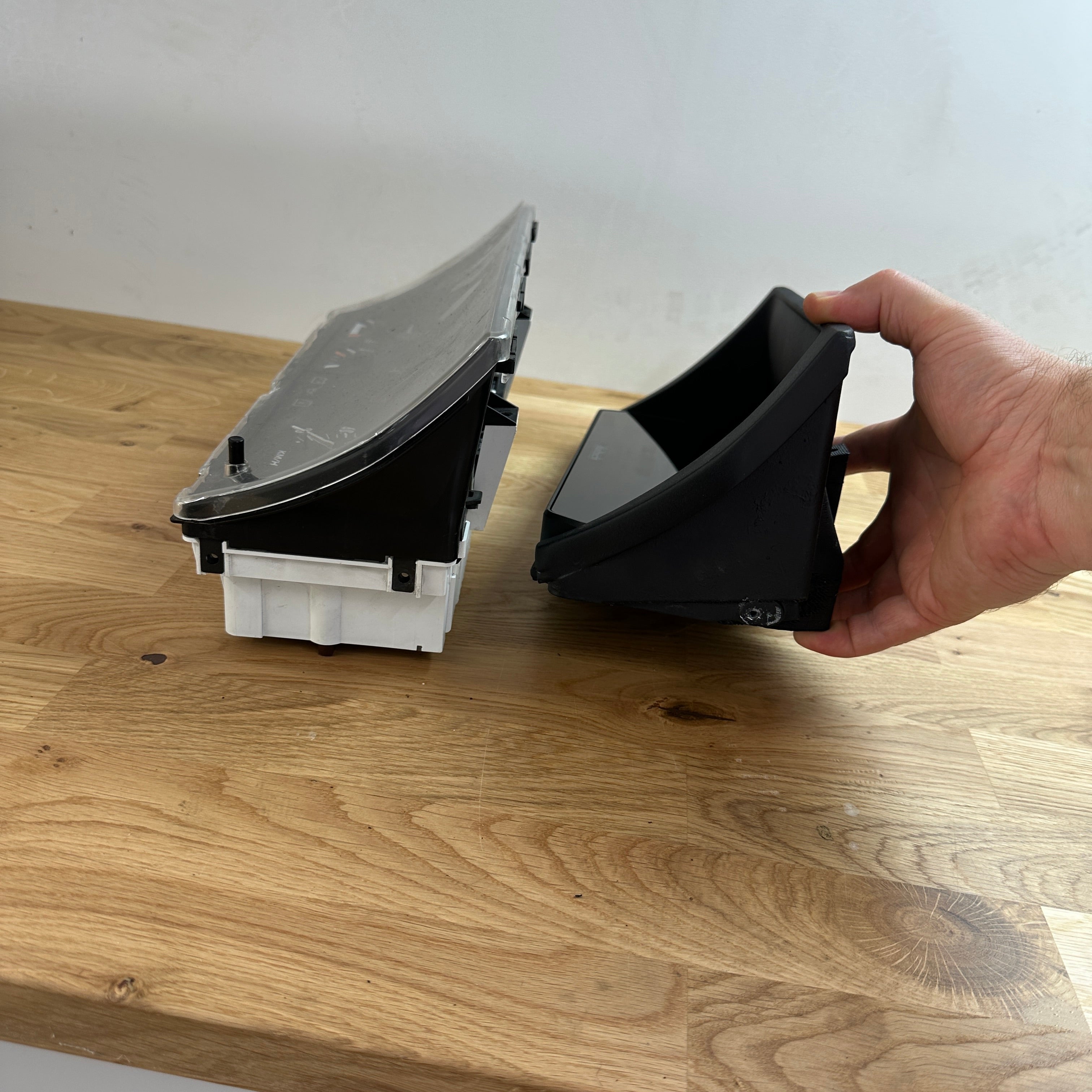

Display size compared to factory cluster

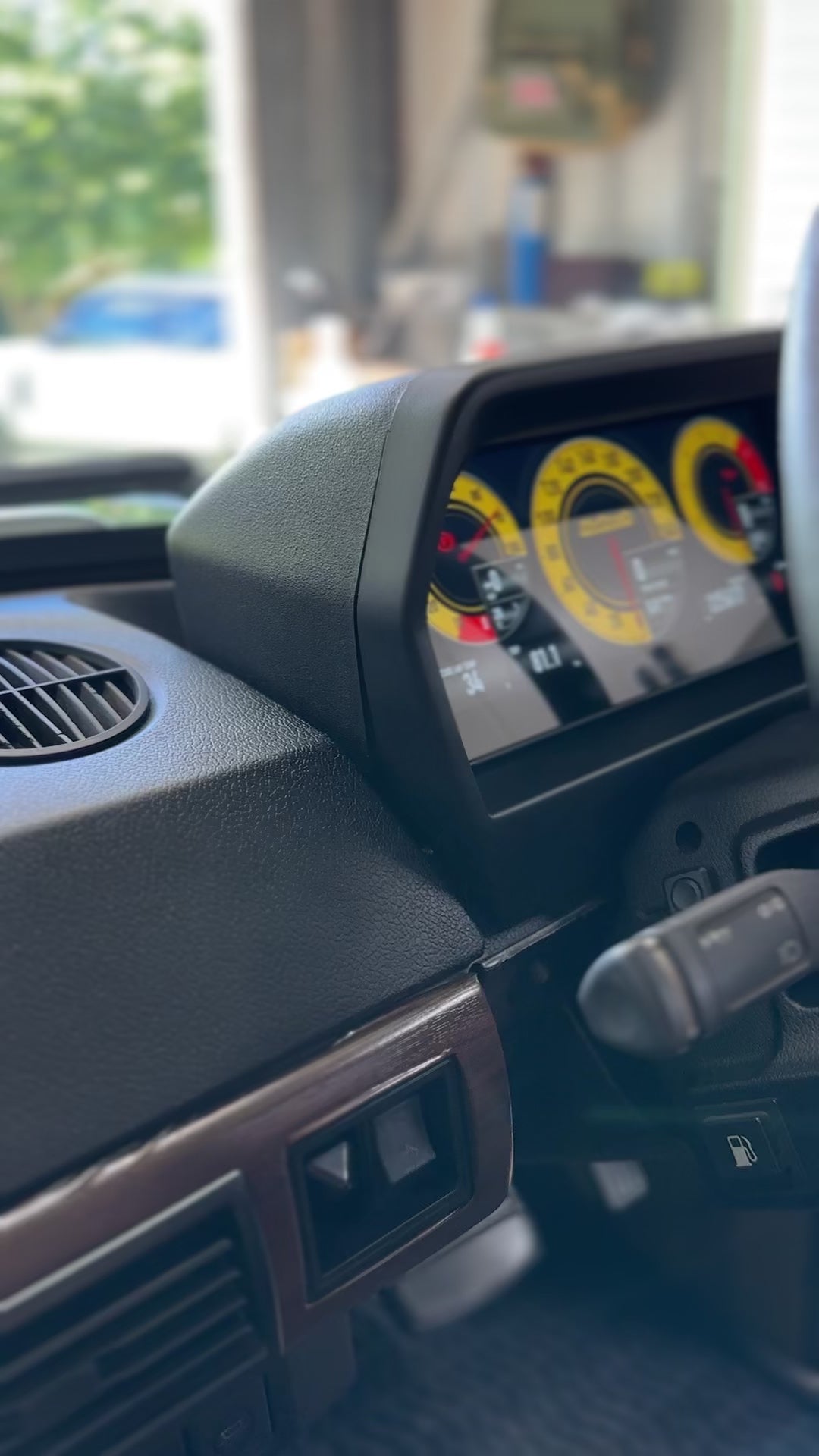

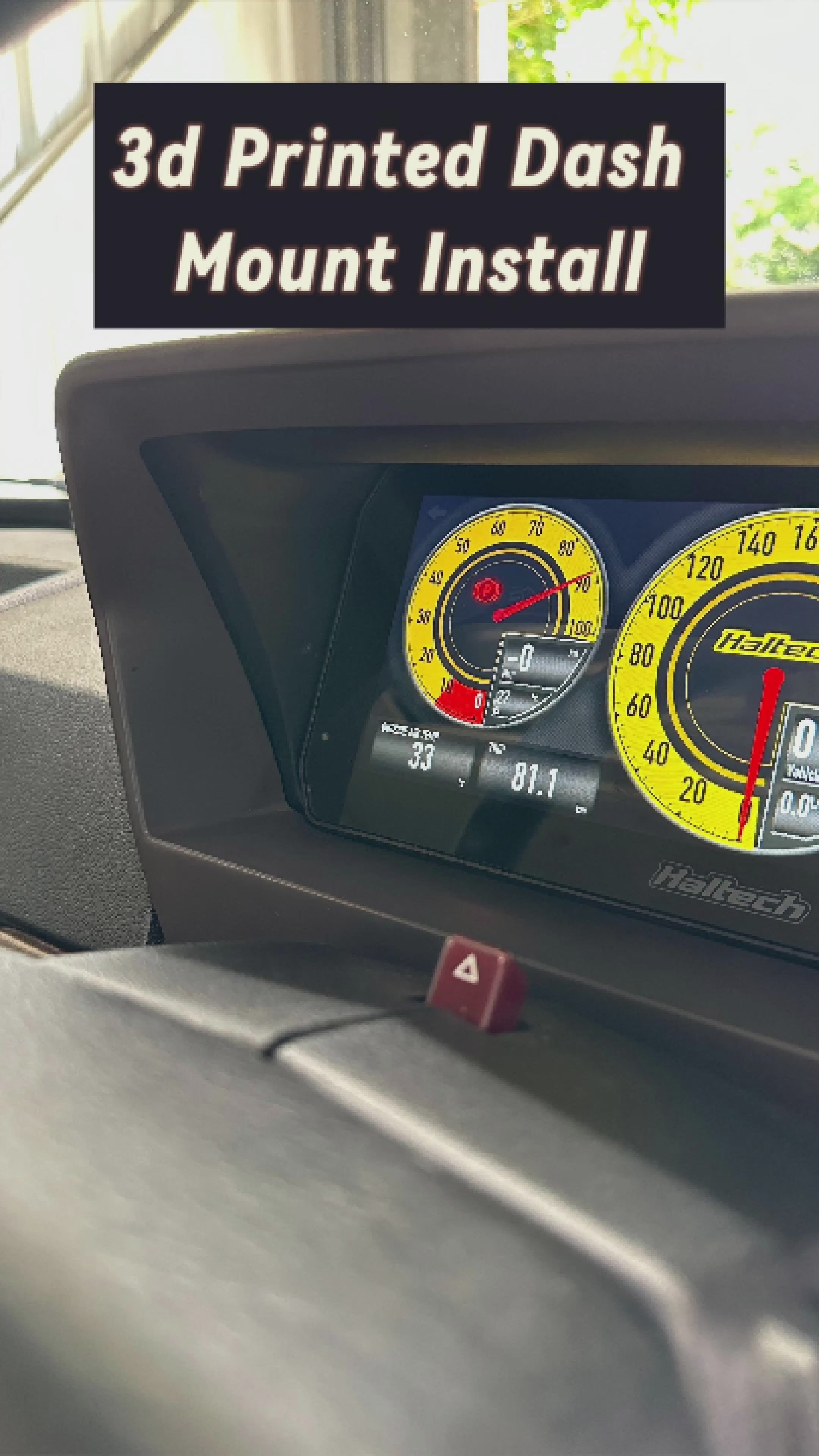

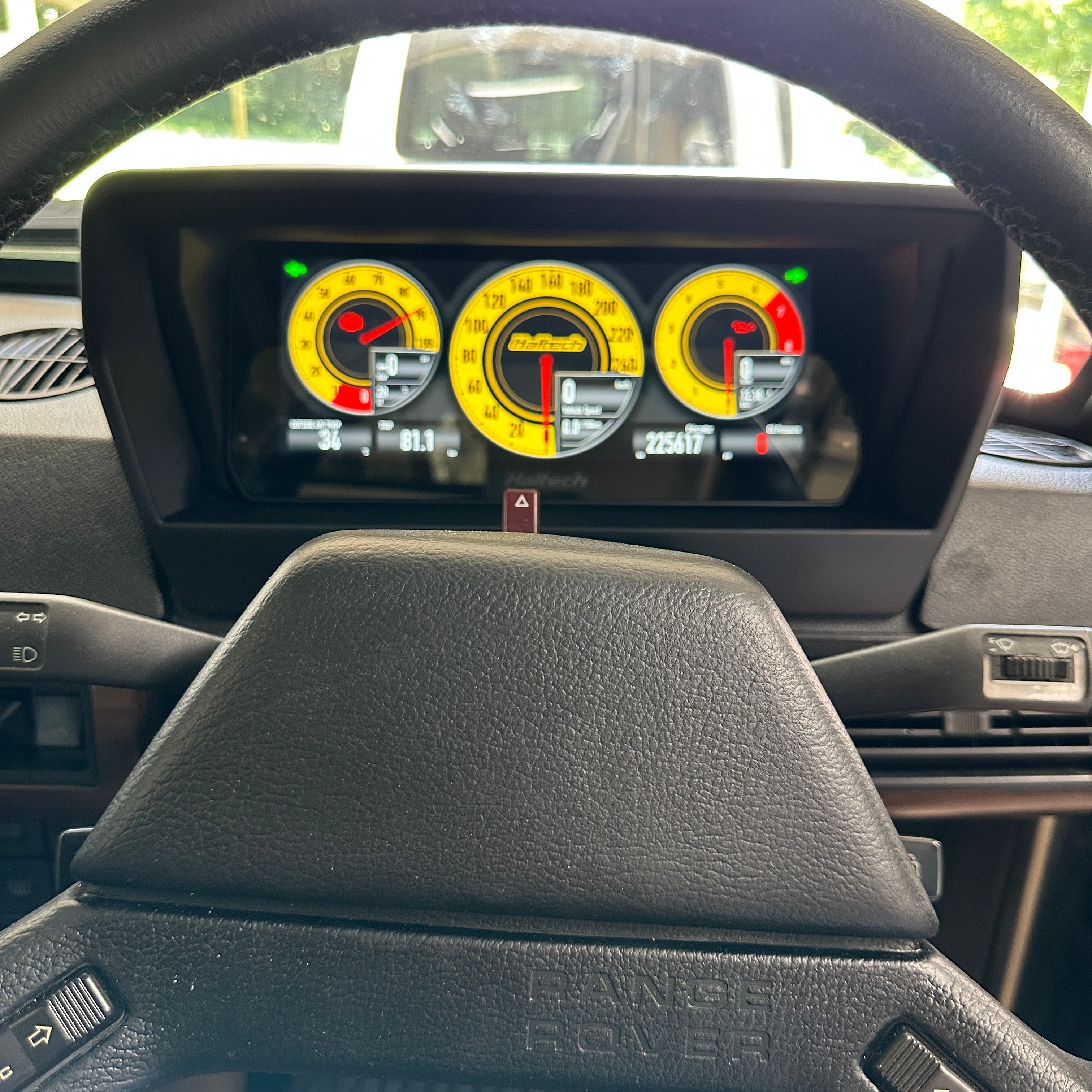

Installed example

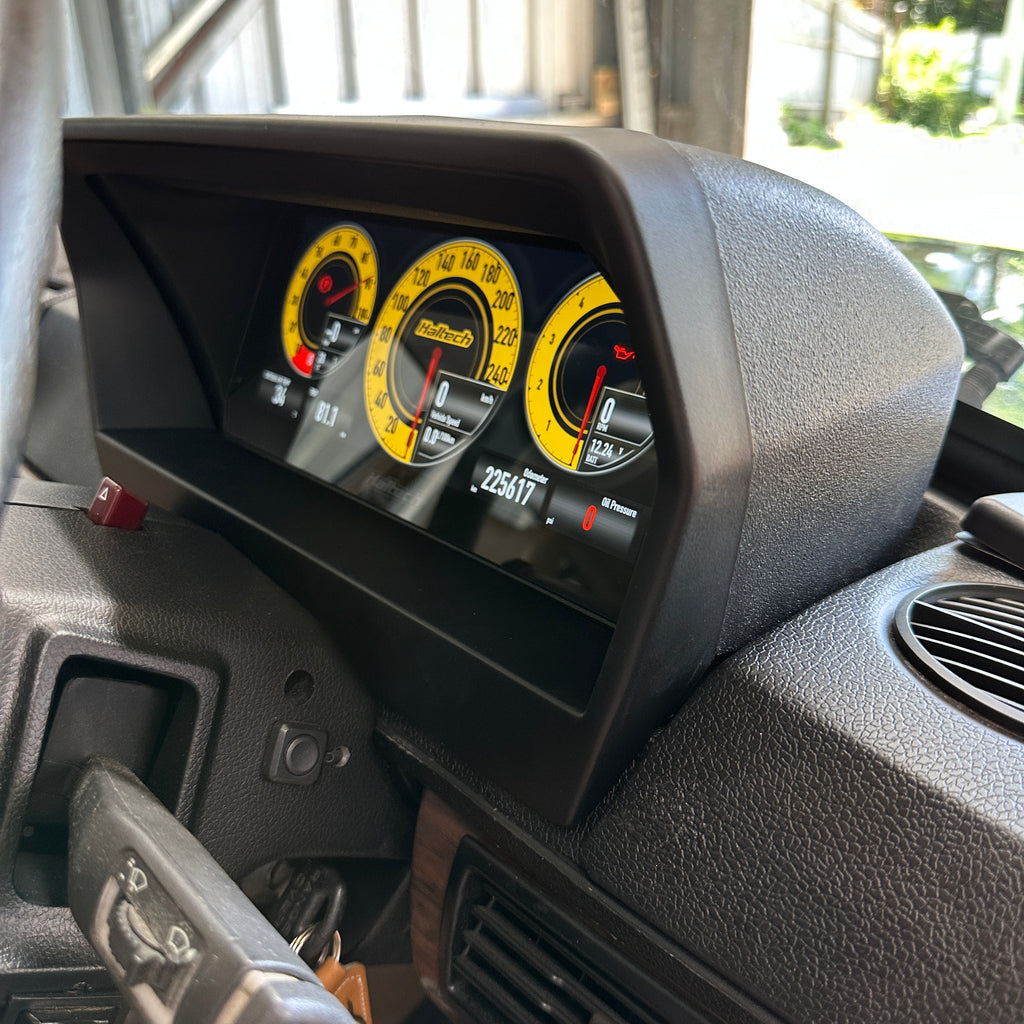

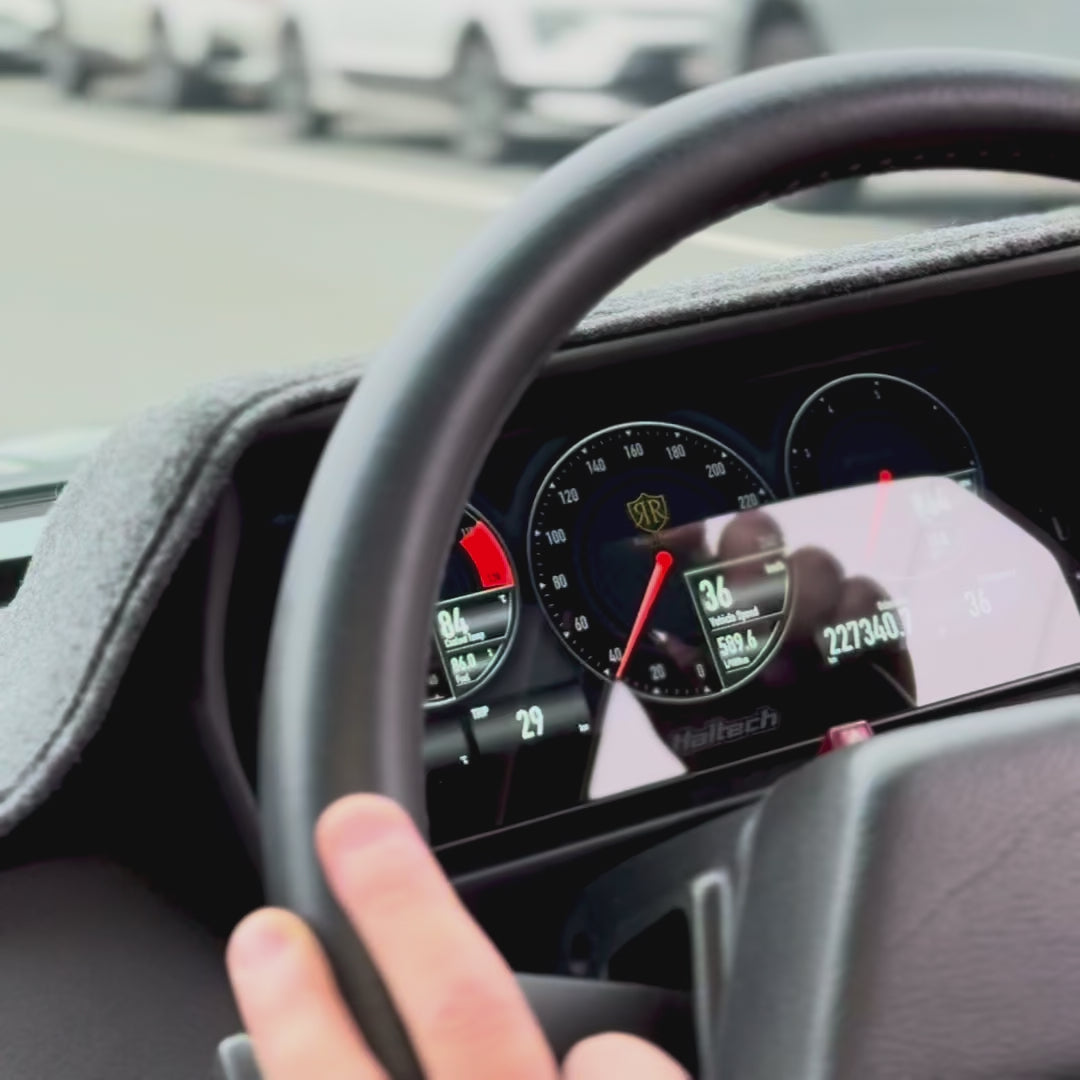

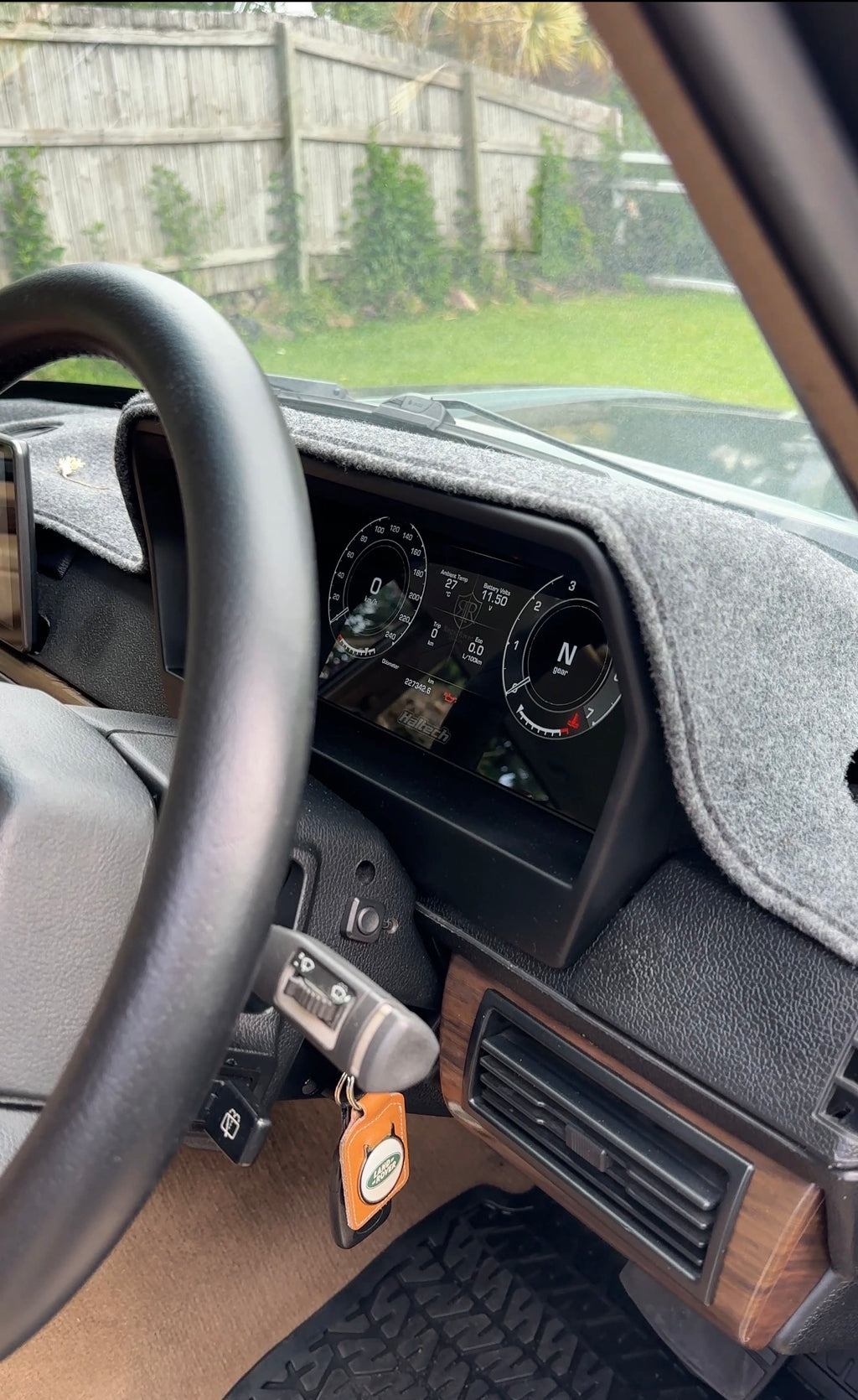

Digital dash fitted to a Range Rover Classic hard dash

ECU compatibility & wiring

The screen is designed to integrate with modern aftermarket ECUs via CAN bus. It works seamlessly with our EFI and ECU kits, which are based on the Haltech platform.

If your vehicle is still running a factory ECU, the display can be configured to work with the appropriate inputs. This configuration is completed by the installer and is not supplied as a pre-configured factory ECU solution.

A fully terminated harness and all required Deutsch connectors are supplied. Final vehicle-side connections (such as indicators, high beam, and brake warning) are completed at the customer’s end.

We provide full installation documentation, including wiring pinouts and references to the relevant Haltech software for configuration. An auto-electrician familiar with Haltech systems is recommended for installation.

Lead time

Made to order. Please allow approximately 2–6 weeks for production and dispatch.
